Products & Services

Engineered for the World's Toughest Environments

ASME U Stamp, IBR & NB certified pressure equipment designed and fabricated to the highest international standards for the global oil & gas industry.

ASME U Stamp CertifiedIBR Approved ManufacturerNB RegisteredISO 9001:2015

Manufacturing Facility

Our Manufacturing Facility

📍 A2/118, Site V, UPSIDC, Kasna, Greater Noida – 201 301, U.P., India

Total Area

5,000 Sq. Mtrs.

Covered Shop Area

3,000 Sq. Mtrs.

Max. Shell Diameter

Up to 4,000 mm

Max. Shell Length

Up to 18,000 mm

Max. Lifting Capacity

50 MT (EOT Crane)

Max. Vessel Weight

Up to 150 MT

Key Machinery & Equipment

CNC Plasma / Flame Cutting Machine— Up to 50 mm thickness

Hydraulic Plate Rolling Machine— 4-Roll, 50 mm × 3,000 mm

Hydraulic Press Brake— 400 Ton, 4,000 mm

Submerged Arc Welding (SAW) Machine— Column & Boom type

MIG / MAG Welding Machines— Multiple stations

TIG Welding Machines— Multiple stations

SMAW Welding Machines— Multiple stations

EOT Overhead Crane— 50 MT capacity

Hydraulic Tube Expanding Machine— For heat exchanger tubes

Shot Blasting Machine— SA 2.5 standard

Post Weld Heat Treatment (PWHT) Furnace— Up to 900°C

Hydrostatic Test Pump— Up to 500 bar

Radiography (RT) Equipment— Gamma & X-Ray

Ultrasonic Testing (UT) Equipment— Digital UT flaw detector

Magnetic Particle Testing (MPT)— Yoke & prod type

Dye Penetrant Testing (DPT)— Colour contrast & fluorescent

Our Product Range

Complete Process Equipment Solutions

Pressure Vessels

We design and fabricate ASME U Stamp certified pressure vessels for high-pressure, high-temperature applications across oil & gas, petrochemical, refinery, and power sectors. Our vessels are engineered to ASME Section VIII Div. 1 & 2 and comply with all applicable international codes.

Design CodeASME Section VIII Div. 1 & 2

CertificationASME U Stamp

MaterialsCarbon Steel, Alloy Steel, Stainless Steel, Duplex

Pressure RangeFull vacuum to 350 bar

Temperature Range-196°C to 600°C

Request a Quote

Heat Exchangers

Our heat exchangers are engineered for maximum thermal efficiency and long service life in demanding process environments. We fabricate shell & tube, U-tube, fixed tube sheet, and floating head configurations to TEMA and ASME standards.

Design CodeASME Section VIII / TEMA

CertificationASME U Stamp

TypesShell & Tube, U-Tube, Fixed Tube Sheet, Floating Head

MaterialsCS, SS, Alloy Steel, Titanium, Duplex

ApplicationsRefineries, Petrochemical, Power, Fertiliser

Request a Quote

Columns & Towers

We fabricate distillation columns, absorption towers, stripping columns, and packed towers for refineries and petrochemical plants. Our columns are designed for precise separation efficiency and long operational life.

Design CodeASME Section VIII Div. 1 & 2

InternalsTrays, Packing, Distributors, Demisters

MaterialsCarbon Steel, Stainless Steel, Clad Plates

Diameter Range300 mm to 4,000 mm

ApplicationsDistillation, Absorption, Stripping, Scrubbing

Request a Quote

Storage Tanks

We design and fabricate API 650/620 compliant storage tanks for crude oil, LPG, chemicals, and water. Our tanks are built for safety, durability, and full regulatory compliance for onshore and offshore applications.

Design CodeAPI 650 / API 620 / IS 803

Capacity Range1 KL to 10,000 KL

MaterialsCarbon Steel, Stainless Steel, Aluminium

TypesFixed Roof, Floating Roof, Cone Roof, Dome Roof

ApplicationsCrude Oil, LPG, Chemicals, Water, Fuel

Request a Quote

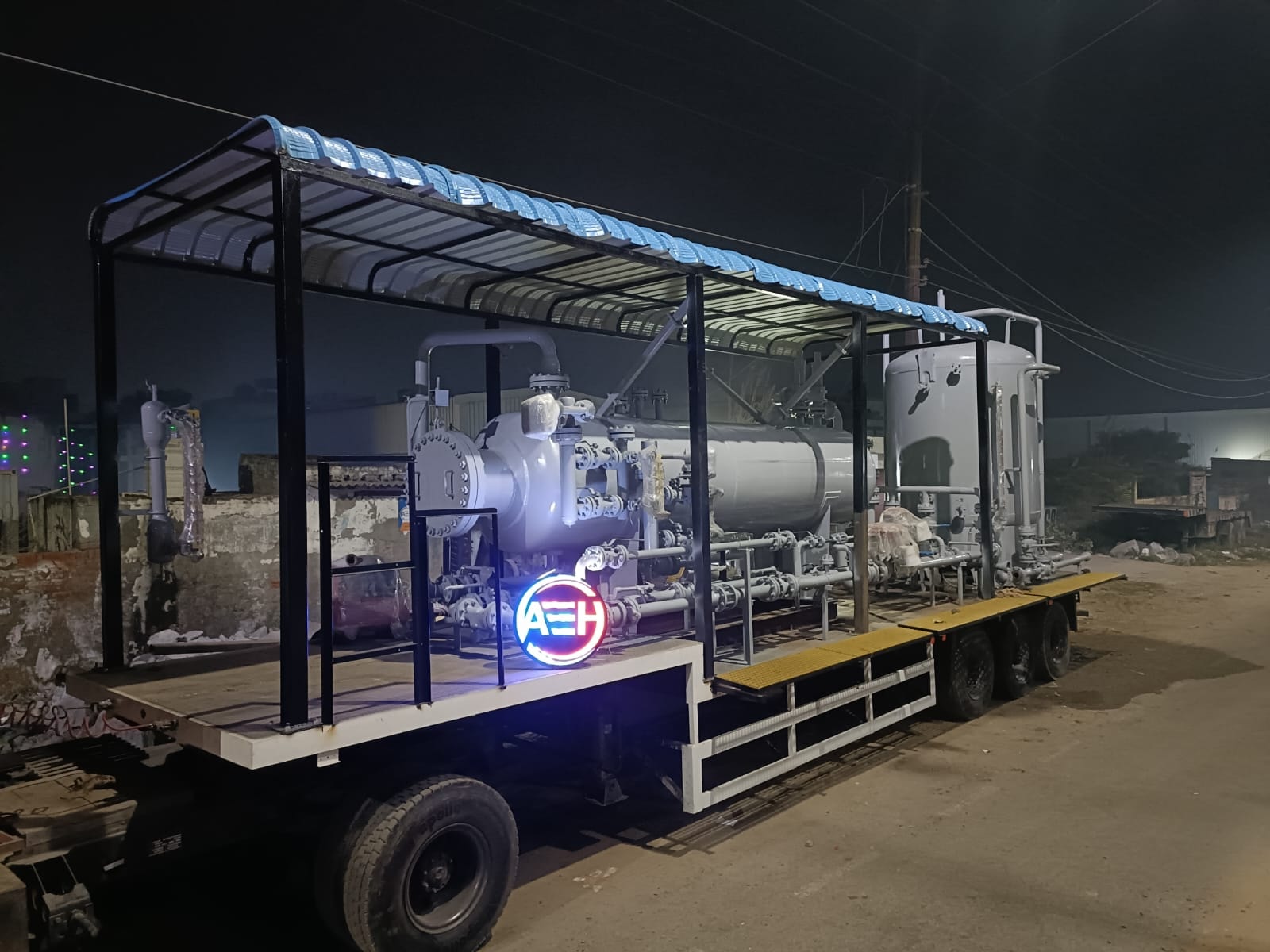

IBR Equipment

As an IBR approved manufacturer, we fabricate boilers, steam drums, feed water heaters, and other pressure parts that comply with Indian Boiler Regulations. Our IBR certified equipment is trusted by power plants and process industries across India.

CertificationIBR Approved Manufacturer

Design CodeIndian Boiler Regulations (IBR)

MaterialsIBR Grade Carbon Steel, Alloy Steel

InspectionThird-party IBR Inspection Authority

ApplicationsPower Plants, Process Industries, Utilities

Request a Quote

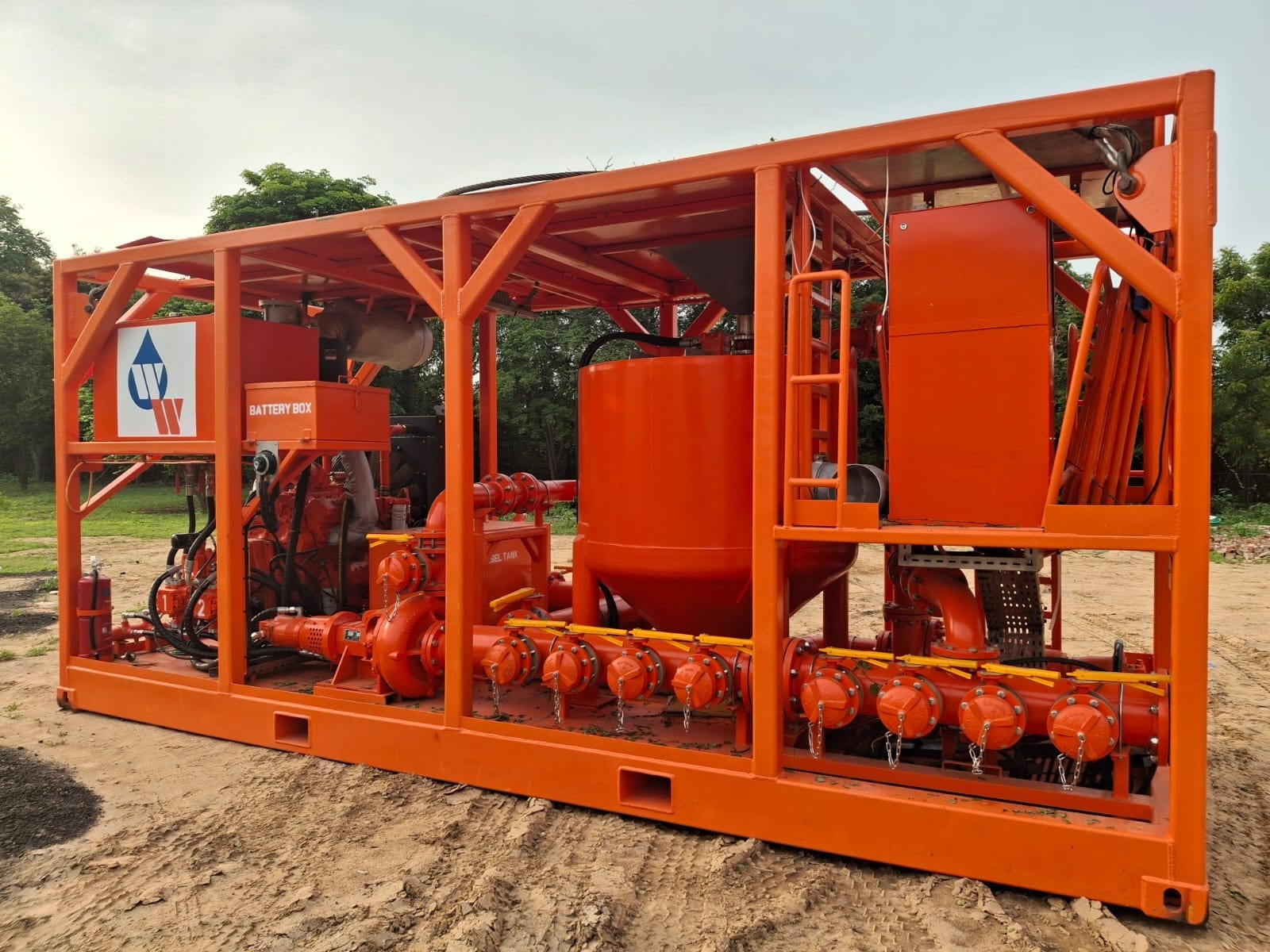

Skid-Mounted Packages

We design and fabricate complete skid-mounted process packages including metering skids, separator skids, chemical injection skids, and utility packages. Our skids are fully assembled, tested, and ready for installation.

DesignCustom engineered to client specifications

StandardsASME, API, IBR, ISO

TestingHydrostatic, Pneumatic, Functional

DocumentationFull MDR, As-Built Drawings, Test Certificates

ApplicationsOil & Gas, Petrochemical, Offshore, Onshore

Request a Quote

Have a Project in Mind?

Send us your specifications and our engineering team will respond within 24 hours.

Send Enquiry
